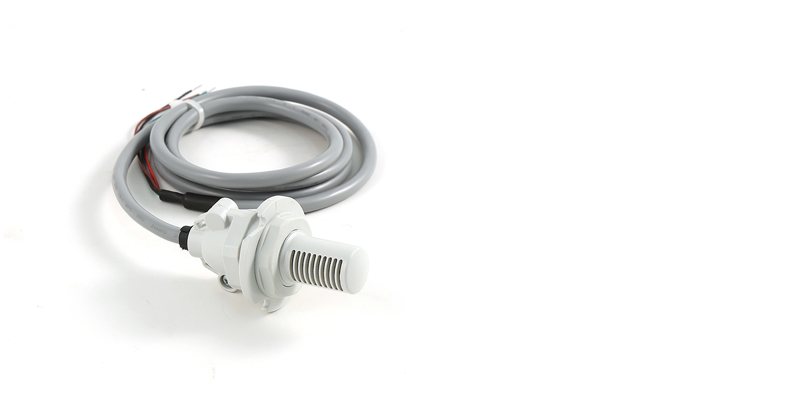

T and H sensors - compact
DPR*
General characteristics
The compact probe is used when temperature and humidity need to be measured in the HVAC sector, and in particular in the following applications:
- Air handling units;
- Air-to-air heat recovery units;
- CRAC units (Computer room air conditioning units), both perimeter and In-row;
It is fitted with an NTC temperature sensor 10K@25°C β=3435 and humidity sensor with 0.5-4.5V output.
The casing guarantees IP40 protection and is designed for panel mounting or fastening using the ring nut provided.
Available with 1 m and 3 m long cables.
