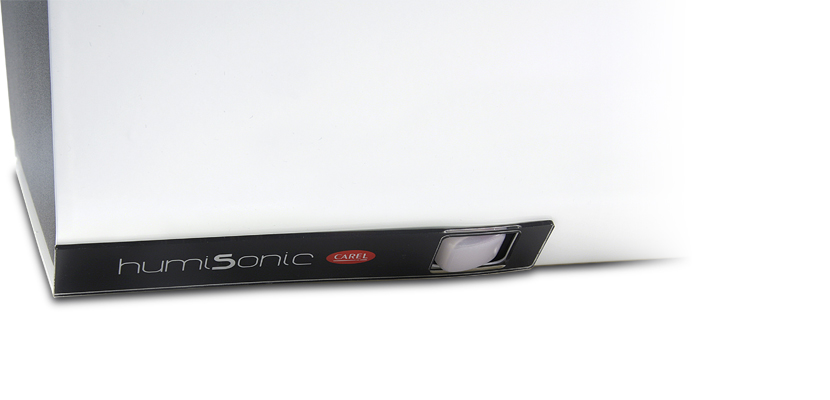

humiSonic direct

UU*R*
humiSonic direct enjoys all the benefits of ultrasound technology, plus additional new improvements developed by CAREL
humiSonic direct enjoys all the benefits of ultrasound technology, plus additional new improvements developed by CAREL humiSonic direct, suitable for every type of application: datacenters, museums, offices, printing facilities and cold stores

  • Plus

    humiSonic direct enjoys all the benefits of ultrasound technology, plus additional new improvements developed by CAREL:

    • energy saving: just 10% of the power consumption of steam humidifiers;
    • reliability: 10,000 hours of uninterrupted operation guaranteed;
    • precision: relative humidity control of ±1% on the set point;
    • absorption efficiency: the droplets, just 1 µm in size, evaporate instantly;
    • easy installation: humiSonic direct only requires a power and feed water connection to start running;
    • hygiene: stainless steel components, no water recirculation and periodical washing cycles.
  • General characteristics

    The features of the new humiSonic direct highlight its versatility and make it suitable for every type of application: datacenters, museums, offices, printing facilities and cold stores are some of the typical uses, thanks to its compactness and efficiency.

    For example, a humiSonic direct humidifier installed in the hot aisle of a datacenters eliminates the need for steam humidifiers in the CCU, simplifying the system and guaranteeing a very fast return on investment, due to the 90% lower running costs.

    humiSonic direct encompasses, in one single solution, the control panel/power supply and air humidity probe. It is therefore a fully stand-alone unit, ideal for both new applications and retrofit installations. In addition, master/slave mode can be used to quadruple humidification system capacity.

    humiSonic direct can be connected to a convenient remote display, so as to monitor the unit without needing to access the humidifier directly.

    It can also be easily integrated into a BMS using an external signal (for example, 0 to 10 V, 4 to 20 mA) or via a serial link with Modbus protocol. If controlled by a sufficiently accurate external signal, humiSonic can achieve exceptional precision: even less than ±1% around the relative humidity set point.

    The transducers that guarantee at least 10,000 continuous operating hours mean maintenance is needed so rarely as to be almost forgotten; humiSonic direct will remind users when maintenance is required
